Procedurally Generating Wrapping World Maps in Unity C# – Part 1

Posted on: January 7th, 2016 by admin 24 Comments

Table of Contents

In Part 1 (this article):

  1. Introduction
  2. Noise Generation
  3. Getting Started
  4. Generating the Height Map

In Part 2:

  1. Wrapping the Map on One Axis
  2. Wrapping the Map on Both Axis
  3. Finding Neighbors
  4. Bitmasking
  5. Flood Filling

In Part 3:

  1. Generating the Heat Map
  2. Generating the Moisture Map
  3. Generating Rivers

In Part 4:

  1. Generating Biomes
  2. Generating Spherical Maps


Introduction

I always like to start these tutorials with an example of what the final output will resemble:

map

The map representations you see above are:


  • Heat Map (Top Left)
  • Height Map (Top Right)
  • Moisture Map (Bottom Right)
  • Biome Map (Bottom Left)

These are the kind of maps I will be showing you how to create, with these tutorials


Noise Generation

There are a multitude of different noise generators on the internet, most of which are open sourced. There is no need to re-invent the wheel here, so I opted to use a custom port of the Accidental Noise library.

The C# port was done by Nikolaj Mariager.

Some minor adjustments were made to his port in order to get it to work properly in Unity.


Getting Started

First, we need some kind of container to store the data that we are going to generate.

So, let’s start off by creating a MapData class. The Min and Max variables will serve as a way to keep track of our generated upper and lower limits.

public class MapData {

	public float[,] Data;
	public float Min { get; set; }
	public float Max { get; set; }

	public MapData(int width, int height)
	{
		Data = new float[width, height];
		Min = float.MaxValue;
		Max = float.MinValue;
	}
}

We are also going to create a Tile class, which will be used to eventually create our Unity gameobjects, from our generated data.

public class Tile
{
	public float HeightValue { get; set; }
	public int X, Y;

	public Tile()
	{
	}
}

In order to see what is going on, we will need some sort of visual representation of the data. For this we create a new TextureGenerator class.

For the time being, this class will simply generate a black and white representation of our data.

using UnityEngine;

public static class TextureGenerator {

	public static Texture2D GetTexture(int width, int height, Tile[,] tiles)
	{
		var texture = new Texture2D(width, height);
		var pixels = new Color[width * height];

		for (var x = 0; x < width; x++)
		{
			for (var y = 0; y < height; y++)
			{
				float value = tiles[x, y].HeightValue;

				//Set color range, 0 = black, 1 = white
				pixels[x + y * width] = Color.Lerp (Color.black, Color.white, value);
			}
		}

		texture.SetPixels(pixels);
		texture.wrapMode = TextureWrapMode.Clamp;
		texture.Apply();
		return texture;
	}

}

We will expand on this Texture Generator soon.


Generating the Height Map

Since I decided that the maps are going to be fixed size, we need to set a map Width and Height. We also need a few adjustable parameters for the noise generator.

We are going to expose these variables to the Unity Inspector, as it will make tuning the maps a lot easier.

The Generator class initializes the Noise module, generates height map data, creates an array of tiles, then generates a texture representation of this data.

Have a look at the code, along with the comments:

using UnityEngine;
using AccidentalNoise;

public class Generator : MonoBehaviour {

	// Adjustable variables for Unity Inspector
	[SerializeField]
	int Width = 256;
	[SerializeField]
	int Height = 256;
	[SerializeField]
	int TerrainOctaves = 6;
	[SerializeField]
	double TerrainFrequency = 1.25;

	// Noise generator module
	ImplicitFractal HeightMap;

	// Height map data
	MapData HeightData;

	// Final Objects
	Tile[,] Tiles;

	// Our texture output (unity component)
	MeshRenderer HeightMapRenderer;

	void Start()
	{
		// Get the mesh we are rendering our output to
		HeightMapRenderer = transform.Find ("HeightTexture").GetComponent<MeshRenderer> ();

		// Initialize the generator
		Initialize ();

		// Build the height map
		GetData (HeightMap, ref HeightData);

		// Build our final objects based on our data
		LoadTiles();

		// Render a texture representation of our map
		HeightMapRenderer.materials[0].mainTexture = TextureGenerator.GetTexture (Width, Height, Tiles);
	}

	private void Initialize()
	{
		// Initialize the HeightMap Generator
		HeightMap = new ImplicitFractal (FractalType.MULTI,
		                               BasisType.SIMPLEX,
		                               InterpolationType.QUINTIC,
		                               TerrainOctaves,
		                               TerrainFrequency,
		                               UnityEngine.Random.Range (0, int.MaxValue));
	}

	// Extract data from a noise module
	private void GetData(ImplicitModuleBase module, ref MapData mapData)
	{
		mapData = new MapData (Width, Height);

		// loop through each x,y point - get height value
		for (var x = 0; x < Width; x++)
		{
			for (var y = 0; y < Height; y++)
			{
				//Sample the noise at smaller intervals
				float x1 = x / (float)Width;
				float y1 = y / (float)Height;

				float value = (float)HeightMap.Get (x1, y1);

				//keep track of the max and min values found
				if (value > mapData.Max) mapData.Max = value;
				if (value < mapData.Min) mapData.Min = value;

				mapData.Data[x,y] = value;
			}
		}
	}

	// Build a Tile array from our data
	private void LoadTiles()
	{
		Tiles = new Tile[Width, Height];

		for (var x = 0; x < Width; x++)
		{
			for (var y = 0; y < Height; y++)
			{
				Tile t = new Tile();
				t.X = x;
				t.Y = y;

				float value = HeightData.Data[x, y];

				//normalize our value between 0 and 1
				value = (value - HeightData.Min) / (HeightData.Max - HeightData.Min);

				t.HeightValue = value;

				Tiles[x,y] = t;
			}
		}
	}

}
Now, if we run this code, we get the following output texture:

map

Doesn't look like much yet, however, it is a very good start. We have an array of data, containing values between 0 and 1, with some very interesting patterns.

Now, we need to start assigning some meaning to this data. For example, we can say that anything that is less than 0.4 is considered water.

We could change the following in our TextureGenerator, setting everything that is less than 0.4 to blue, and everything else to white:

if (value < 0.4f)
	pixels[x + y * width] = Color.blue;
else
	pixels[x + y * width] = Color.white;

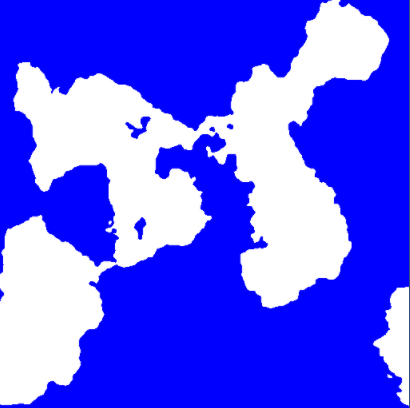

Doing so, we then get the following output:

map

Now we are getting somewhere. We can start to see some shapes appear with this simple rule. Let's take this a step further.

Let's add some more adjustable variables to our Generator class. These will define what our height values will assign with.

	float DeepWater = 0.2f;
	float ShallowWater = 0.4f;
	float Sand = 0.5f;
	float Grass = 0.7f;
	float Forest = 0.8f;
	float Rock = 0.9f;
	float Snow = 1;

Let's also add some custom colours to our Texture Generator:


	private static Color DeepColor = new Color(0, 0, 0.5f, 1);
	private static Color ShallowColor = new Color(25/255f, 25/255f, 150/255f, 1);
	private static Color SandColor = new Color(240 / 255f, 240 / 255f, 64 / 255f, 1);
	private static Color GrassColor = new Color(50 / 255f, 220 / 255f, 20 / 255f, 1);
	private static Color ForestColor = new Color(16 / 255f, 160 / 255f, 0, 1);
	private static Color RockColor = new Color(0.5f, 0.5f, 0.5f, 1);
	private static Color SnowColor = new Color(1, 1, 1, 1);

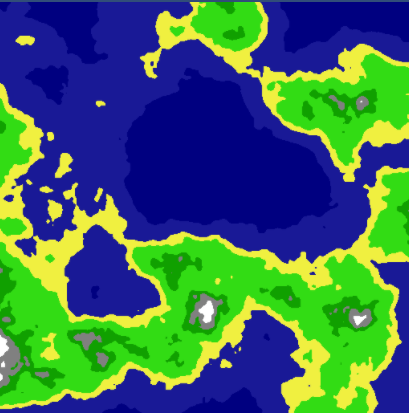

Adding in all these rules, in a similar fashion, and we then get the following results:

map

Now we have a lovely Height Map, with a nice texture representing it.

You may download the source code on github for part 1 here.

Continue to Part 2 of this series.
